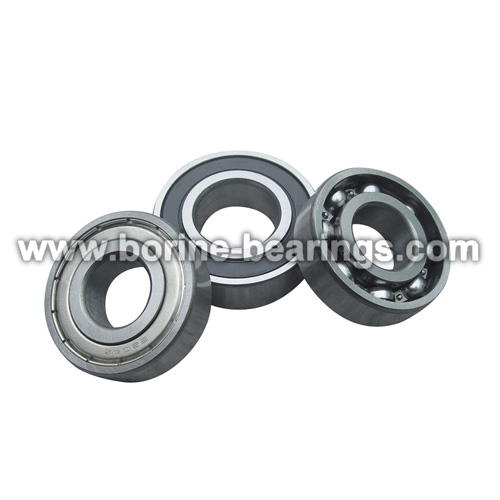

Deep Groove Ball Bearings 62200 series

Product Name: Deep Groove Ball Bearings 62200 series
Model NO.: 62200, 62300 Series

Product Details: Deep Groove Ball Bearings 62200 series

Deep groove ball bearing is applied widely.It can be bear the radial and axial loading, suitable for high speed rotation.
Matric Size have 6000,6200,6300,6400,6800,6900,16000,62200,62300 series.
Other special ball bearing can be produced according to the samples or draws supplied by customers.

Deep Groove Ball Bearings

62200, 62300, 63000 Series

Bearing Number	Bore d		Outer Diameter D		Width W		Basic Load Rating		Weight
Bearing Number	mm	in.	mm	in.	mm	in.	Dynamic Cr (N)	Static Cor (N)	kg.
63000	10	0.3937	26	1.0236	12	0.4724	4550	1960	0.025
62200			30	1.1811	14	0.5512	5100	2390	0.044
62300			35	1.3780	17	0.6693	5200	3500	0.078
63001	12	0.4724	28	1.1024	12	0.4724	5100	2390	0.029
62201			32	1.2598	14	0.5512	6100	2750	0.053
62301			37	1.4567	17	0.6693	9700	4200	0.079
63002	15	0.5906	32	1.2598	13	0.5118	5600	2840	0.039
62202			35	1.3780	14	0.5512	7750	3600	0.065
62302			42	1.6535	17	0.6693	11400	5450	0.099
63003	17	0.6693	35	1.3780	14	0.5512	6800	3350	0.052
62203			40	1.5748	16	0.6299	9600	4600	0.069
62303			47	1.8504	19	0.7480	13500	6550	0.140
63004	20	0.7874	42	1.6535	16	0.6299	9400	5050	0.086
62204			47	1.8504	18	0.7087	12800	6650	0.145
62304			52	2.0472	21	0.8268	15900	7900	0.185
63005	25	0.9843	47	1.8504	16	0.6299	10400	5850	0.100
62205			52	2.0472	18	0.7087	14000	7850	0.172
62305			62	2.4409	24	0.9449	21200	10900	0.284
63006	30	1.1811	55	2.1654	19	0.7480	13200	8300	0.160
62206			62	2.4409	20	0.7874	19500	11300	0.275
62306			72	2.8346	27	1.0630	26700	15000	0.460
63007	35	1.3780	62	2.4409	20	0.7874	16000	10300	0.210
62207			72	2.8346	23	0.9055	25700	15300	0.410
62307			80	3.1496	31	1.2205	33500	19100	0.560
63008	40	1.5748	68	2.6772	21	0.8268	16800	11500	0.260
62208			80	3.1496	23	0.9055	29100	17800	0.616
62308			90	3.5433	33	1.2992	40500	24000	0.850
62209	45	1.7717	85	3.3465	23	0.9055	31670	20680	0.625
62309	45	1.7717	100	3.9370	36	1.4173	52800	31800	1.100
62210	50	1.9867	90	3.5433	23	0.9055	35070	23180	0.726
