China Disc Harrow Unit,Disc Harrow Unit Manufacturer

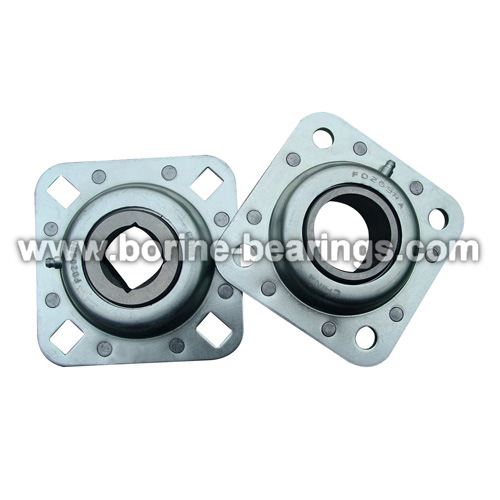

Flanged Disc Harrow Units ( Riveted 4-bolts Flange Bearings) series incorporates a bearing with two , one-piece triple lip shroud seals and two rubber "O-rings". It is encased in two heavy gauge stamped steel Housings (Mountings) which are riveted together. Relubricable.
The Disc Harrow Unit is avalible in two basic size group one incorporateing a 209 and one a 211 bearing. It is applied for John Deere, Kewanee, Sunflower, case-IH, Krause, Brent etc.

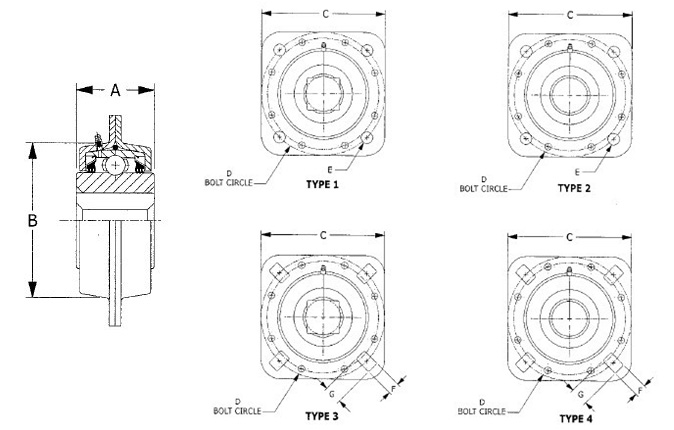

Disc Harrow Units Dimensions
| BCA No. | FAFNIR No. | Type | Boundary Dimensions (inch) | Wt | ||||||
| Shaft size | A | C | D | E | F | G | (kg) | |||
| FD 209 RA | DHU491A | 2 | 1-3/4 Round | 1.687 | 5.000 | 5.000 | 0.531 | 1.509 | ||
| FD 209 RB | DHU 1-1/2R-209 | 4 | 1-1/2 Round | 1.687 | 5.000 | 5.000 | 0.531 | 0.687 | 1.624 | |
| FD 209 RM | DHU 1-1/8S-209 | 3 | 1-1/8 Square | 1.687 | 5.000 | 5.000 | 0.531 | 0.687 | 1.723 | |
| FD 209 RK | DHU 1-1/4S-209 | 3 | 1-1/4 Square | 1.687 | 5.000 | 5.000 | 0.531 | 0.687 | 1.700 | |
| FD 211 RM | DHU 1-1/2S-211 | 3 | 1-1/2 Squsre | 2.000 | 5.500 | 5.500 | 0.531 | 0.687 | 2.561 | |
| FD 211 REA | DHU 1-3/4R-211 | 2 | 1-3/4 Round | 2.187 | 5.500 | 5.500 | 0.531 | 2.650 | ||
| FD 211 RJA | DHU 1-15/16R-211 | 2 | 1-15/16 Round | 2.125 | 5.500 | 5.500 | 0.531 | 2.711 | ||
| FD 211 RBA | DHU 2-3/16R-211 | 2 | 2-3/16 Round | 2.187 | 5.500 | 5.500 | 0.531 | 2.428 | ||
| FD 211 RKB | 1-3/4 Hex | 2.188 | 5.500 | 5.500 | 0.531 | |||||
