Drawn Cup Full Complent series

Product Name: Drawn Cup Full Complent series

Product Details: Drawn Cup Full Complent series

Drawn Cup Needle Roller Bearing is designed with outer ring is made of cold rolled steel strip accurately formed.Structure of needle roller bearing features space saving and higher capacity.It is suitable for applications with limited space and housing not hard enough to act as raceway.
Structures of various series: F, FH, MF, MFH, B, BH, M, MH.

Needle roller Bearings
Drawn Cup Full Complent Needle Roller Bearings

Shaft	Bearing Designation and mass apporx			Boundary Dimensions (mm)			Load Rating (KN)
Dia (mm)	Current No.	Old No.	Wt. (g)	Fw	D	C	Cr	Cor
6	F-0608	30941/6	2.5	6	10	8	3.08	5.80
8	F-0810	50941/8	3.7	8	12	10	4.05	7.15
	FH-0810	941/8	7	8	14	10	5.20	7.15
	FH-0812	942/8	9	8	14	12	4.55	7.15
9	F-0910	50941/9	4	9	13	10	4.90	8.05
	FH-0910	941/9	6	9	15	10	8.00	11.50
	FH9X15X13	942/9	8	9	15	13	8.56	12.80
10	F-1010	50941/10	4.2	10	14	10	5.70	9.35
	FH-1010	941/10	6.5	10	16	10	6.35	10.80
	F10X16X15	942/10	12	10	16	15	6.89	11.50
12	F-1212	50941/12	6	12	16	12	6.38	10.90
	F12X17X12	941/12	8	12	17	12	8.40	11.90
	F12X17X15	942/12	10.5	12	17	15	9.00	12.50
	F12X17X18	943/12	13	12	17	18	9.80	13.50
15	F15X20X12	941/15	10	15	20	12	8.40	11.90
	F15X20X16	942/15	13.6	15	20	16	9.50	12.80
	F15X20X20	943/15	17.2	15	20	20	10.50	16.00
	F-1512	30941/15	12	15	21	12	9.70	15.90
16	F-1616	50941/16	17	16	22	16	14.10	25.90
17	F-1712	30941/17	13	17	23	12	10.60	21.60
	F-1714	941/17	15	17	23	14	12.50	22.50
	F-1718	942/17	21	17	23	18	13.80	24.80
18	F-1816	50941/18	18	18	24	16	15.00	29.10
20	F-2014	941/20	17	20	26	14	15.80	40.50
	F-2020	942/20	26	20	26	20	18.80	42.50
	F20X26X25	943/20	33	20	26	25	20.50	35.50
25	F-2516	941/25	28	25	32	16	18.70	37.90
	F-2522	942/25	40	25	32	22	11.00	16.50
	F25X32X25	943/25	43	25	32	25	11.50	18.50
	F25X33X08	Y253308	16.7	25	33	8	12.20	16.80
28	F-2820	60941/28	118	28	35	20	25.70	58.30
30	F-3020	60941/30	42	30	37	20	26.80	62.50
	MF-3020	65941/30	48	30	37	20	26.80	62.50
	F30X38X16	941/30	37.5	30	38	16	25.50	57.50
	F30X38X24	942/30	57.5	30	38	24	28.80	64.50
	F30X38X32	943/30	81.5	30	38	32	34.50	78.90
32	F-3216	40941/32	35	32	39	16	25.80	61.50
35	F-3520	60941/35	49	35	42	20	24.00	69.10
	F35X43X16	941/35	41	35	43	16	23.50	68.00
	F35X43X25	942/35	72	35	43	25	38.70	86.20
	F35X43X32	943/35	90	35	43	32	40.50	97.80
40	F-4020	60941/40	56	40	47	20	30.30	82.60
40	FH-4032	942/40	88	40	50	32	42.50	108.00
45	F-4520	-	62	45	52	20	30.40	90.10
50	F-5020	50941/50	78	50	58	20	35.80	98.00
60	F60X68X40	943/60	185	60	68	40	50.20	145.00

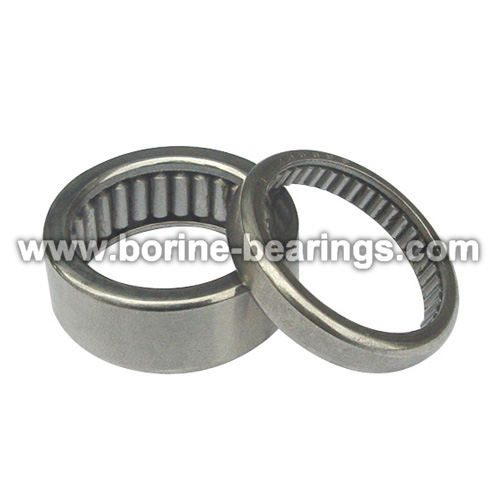

Product Images: Drawn Cup Full Complent series
