Drawn Cup Needle roller Bearing

Product Name: Drawn Cup Needle roller Bearing

Product Details: Drawn Cup Needle roller Bearing

Drawn Cup Needle Roller Bearing is designed with outer ring is made of cold rolled steel strip accurately formed.Structure of needle roller bearing features space saving and higher capacity.It is suitable for applications with limited space and housing not hard enough to act as raceway.
Structures of various series:HK, BK, SCE, BCE, SCH, BCH.

Needle roller Bearings
Drawn Cup Needle Roller Bearings

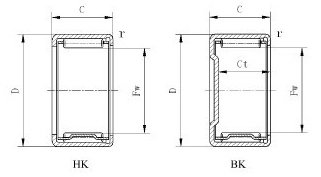

Shaft	Bearing Designation and mass apporx				Boundary Dimensions (mm)			Limiting
Dia (mm)	Open end	Wt. (g)	Closed end	Wt. (g)	FW	D	C	Speed
3	HK0306TN	1.00	BK0306TN	1.00	3	6.5	6	40000
4	HK0408TN	1.60	BK0408TN	1.80	4	8	6	40000
5	HK0509	2.00	BK0509	2.10	5	9	9	36000
6	HK0607	1.80	-	-	6	10	7	30000
	HK0608	2.10	BK0608	2.20	6	10	8	32000
	HK0609	2.20	BK0609	2.60	6	10	9	30000
	HK0611	2.30	-	-	6	10	11	29000
	HK06X12X08	2.50	-	-	6	12	8	33000
7	HK0709	2.30	BK0709	2.90	7	11	9	27000
	HK07X12X08	2.20	-	-	7	12	8	37000
	HK07X12X09	2.40	-	-	7	12	9	37000
8	HK0808	2.70	BK0808	3.00	8	12	8	21000
	HK0810	3.00	BK0810	3.40	8	12	10	21000
	HK08X14X10	5.35	BK08X14X10	5.80	8	14	10	25000
	HK08X14X12	6.60	-	-	8	14	12	25000
9	HK0908	3.00	BK0908	3.40	9	13	8	25000
	HK0910	4.00	BK0910	4.30	9	13	10	25000
	HK0911	4.10	-	-	9	13	11	25000
	HK0912	4.60	BK0912	4.90	9	13	12	25000
	HK09X15X10	5.60	-	-	9	15	10	25000
10	HK10X13X08	3.50	-	-	10	13	8	20000
	HK1010	4.10	BK1010	4.30	10	14	10	19000
	HK1012	4.80	BK1012	5.00	10	14	12	19000
	HK1015	6.00	BK1015	6.20	10	14	15	19000
	HK10X15X15	6.50	-	-	10	15	15	18000
	HK10X16X10	6.50	BK10X16X10	6.80	10	16	10	18000
	HK10X16X12	7.50	-	-	10	16	12	18000
	HK10X16X15	11.00	-	-	10	16	15	19000
	HK10X17X15	11.50	-	-	10	17	15	19000
	HK10X18X12	8.50	-	-	10	18	12	19000
12	HK1208	3.30	-	-	12	16	8	19000
	HK1210	4.60	BK1210	5.20	12	16	10	19000
	HK1212	5.60	BK1212	6.20	12	16	12	19000
	HK12X17X12	7.50	-	-	12	17	12	15000
	HK12X17X15	9.50	-	-	12	17	15	15000
	HK12X17X18	11.00	-	-	12	17	18	15000
	HK12X18X12	9.10	BK12X18X12	10.30	12	18	12	17000
	HK12X18X14	10.60	-	-	12	18	14	15000
	HK12X19X12	10.00	-	-	12	19	12	15000
13	HK1311	8.50	-	-	13	19	11	14000
13	HK1312	8.90	BK1312	11.20	13	19	12	17000
13.5	HK13.5X20X12	10.80	-	-	13.5	20	12	16000
14	HK1410	8.30	BK1410	12.10	14	20	10	16000
	HK1412	10.50	-	-	14	20	12	16000
	HK1416	13.90	-	-	14	20	16	14000
15	HK15X20X12	8.40	-	-	15	20	12	14000
	HK15X20X16	11.40	-	-	15	20	16	14000
	HK15X20X20	13.80	-	-	15	20	20	14000
	HK1512	11.10	BK1512	12.70	15	21	12	14000
	HK1514	12.70	-	-	15	21	14	13000
	HK1515	14.20	-	-	15	21	15	13000
	HK1516	15.00	BK1516	16.50	15	21	16	13000
	HK1522	20.40	BK1522	22.00	15	21	12	14000
	HK15X22X12	12.50	-	-	15	22	12	13000
	HK15X22X12.5	13.50	-	-	15	22	12.5	13000
16	HK16X21X06	5.50	-	-	16	21	6	12000
	HK16X21X09	7.50	-	-	16	21	9	12000
	HK1612	11.70	BK1612	13.80	16	22	12	14000
	HK1614	14.40	-	-	16	22	14	12000
	HK1616	15.80	BK1616	17.60	16	22	16	14000
	HK1617	18.00	-	-	16	22	17	12300
	HK1622	21.70	BK1622	23.40	16	22	22	14000
17	HK17X21.5X15	10.00	-	-	17	21.5	15	11000
	HK1712	12.20	BK1712	14.50	17	23	12	13000
	HK1714	14.00	-	-	17	23	14	10000
	HK1716	15.90	-	-	17	23	16	10000
	HK1718	19.00	-	-	17	23	18	10000
	HK17X24X15	17.00	-	-	17	24	15	10000
	HK17X25X14	17.70	-	-	17	25	14	10000
	HK17X25X15.5	20.00	-	-	17	25	15.5	10000
	HK17X25X18	23.50	-	-	17	25	18	11000
18	HK1812	13.10	BK1812	14.90	18	24	12	12000
18	HK1816	17.50	BK1816	19.90	18	24	16	12000
19	HK19X27X16	23.00	-	-	19	27	16	10500
20	HK2010	11.80	BK2010	14.00	20	26	10	10000
	HK2011	12.00	-	-	20	26	11	9000
	HK2012	14.10	BK2012	16.70	20	26	12	10000
	HK2014	15.70	-	-	20	26	14	9000
	HK2016	19.30	BK2016	22.30	20	26	16	10000
	HK2018	23.30	-	-	20	26	18	9000
	HK2020	24.10	BK2020	27.10	20	26	20	10000
	HK2025	28.00	-	-	20	26	25	9900
	HK2030	34.70	BK2030	37.40	20	26	30	101000
	HK20X27X18	78.00	-	-	20	27	18	9900
	HK20X27X20	82.00	-	-	20	27	20	9900
	HK20X27X30	94.00	-	-	20	27	30	9900
	HK20X28X16	28.50	-	-	20	28	16	9900
	HK20X29X18	41.00	-	-	20	29	18	9900
22	HK22X28X7.5TN	8.80	-	-	20	28	7.5	10010
	HK2210	12.30	-	-	22	28	10	10010
	HK2212	15.00	BK2212	18.10	22	28	12	10010
	HK2216	20.90	BK2216	24.30	22	28	16	10010
	HK2220	26.20	BK2220	29.90	22	28	20	10010
	HK2230	32.00	-	-	22	28	30	9000
	HK22X29X25	37.00	-	-	22	29	25	9000
	HK22X29X30	43.00	-	-	22	29	30	9000
	HK22X30X14	21.90	-	-	22	30	14	9000
24	HK24X30X7.5TN	10.60	-	-	24	30	7.5	10000
25	HK2510	20.00	BK2510	23.20	25	32	12	9000
	HK2514	21.90	-	-	25	32	14	9000
	HK2516	27.30	BK2516	31.00	25	32	16	9000
	HK2518	28.20	-	-	25	30	18	9000
	HK2520	34.10	BK2520	38.70	25	32	20	9000
	HK2525	40.00	-	-	25	32	25	9000
	HK2526	44.80	BK2526	49.00	25	32	26	9000
	HK2538	64.70	BK2538	69.00	25	32	38	9000
	HK25X33X10	17.00	-	-	25	33	10	9000
	HK25X33X15	27.40	-	-	25	33	15	9000
	HK25X35X20	44.90	-	-	25	35	20	9000
28	HK2816	30.10	BK2816	34.10	28	35	16	8700
	HK2818	31.70	-	-	28	35	18	8700
	HK2820	37.60	BK2820	43.00	28	35	20	8700
30	HK3012	24.00	BK3012	27.90	30	37	12	8100
	HK3016	32.00	BK3016	37.10	30	37	16	8100
	HK3018	33.60	-	-	30	37	18	8100
	HK3020	40.10	BK3020	46.50	30	37	20	8100
	HK3026	52.90	BK3026	59.40	30	37	26	8100
	HK3038	76.10	BK3038	82.80	30	37	38	8100
	HK30X38X12	28.00	-	-	30	38	12	8100
	HK30X38X16	32.70	-	-	30	38	16	8100
	HK30X38X24	49.00	-	-	30	38	24	8100
	HK30X38X32	69.00	-	-	30	38	32	8100
32	HK32X38X11	17.00	-	-	32	38	11	7800
	HK3224	50.70	-	-	32	39	24	7300
	HK3232	66.40	-	-	32	39	32	7100
	HK32X40X32	72.70	-	-	32	40	32	7100
35	HK3512	27.70	BK3512	32.90	35	42	12	7100
	HK3516	36.90	BK3516	43.80	35	42	16	7100
	HK3520	46.10	BK3520	54.80	35	42	20	7100
	HK35X43X16	37.00	-	-	35	43	16	6200
	HK35X43X25	60.50	-	-	35	43	25	6200
	HK35X43X32	80.00	-	-	35	43	32	6200
	HK35X45X12	31.00	-	-	35	45	12	6200
36	HK36X42X12	23.00	-	-	36	42	12	6000
38	HK38X48X30	102.00	-	-	38	48	30	6300
40	HK4012	31.30	BK4012	38.20	40	47	12	6300
	HK4016	41.40	BK4016	51.00	40	47	16	6300
	HK4020	51.80	BK4020	62.00	40	47	20	6300
	HK40X50X32	114.30	-	-	40	50	32	6000
	HK40X50X38	130.80	-	-	40	50	38	6000
45	HK4512	34.80	BK4512	45.00	45	52	12	5800
	HK4516	46.20	BK4516	56.00	45	52	16	5800
	HK4520	56.00	BK4520	72.00	45	52	20	5800
	HK45X55X38	135.00	-	-	45	55	38	5300
50	HK50X57X16	51.20	-	-	50	57	12	5300
	HK5012	44.20	-	-	50	58	12	5300
	HK5020	72.00	BK5020	87.30	50	58	20	5300
	HK5025	90.10	BK5025	109.00	50	58	25	5300
	HK50X60X38	140.00	-	-	50	60	38	4600
55	HK5520	78.00	BK5520	93.80	55	63	20	4600
	HK5525	109.00	-	-	55	63	25	4600
	HK5528	111.00	BK5528	132.00	55	63	28	4600
60	HK6012	49.20	BK6012	77.00	60	68	12	4100
	HK6020	86.00	BK6020	105.00	60	68	20	4100
	HK6032	136.00	BK6032	164.00	60	68	32	4100

1),TN=plastic cage,permissible operating temperature:120oC(Continuous operation)
2),Limiting speed for oil lubrication,for grease lubrication,60% of the values given in the table is permisible.

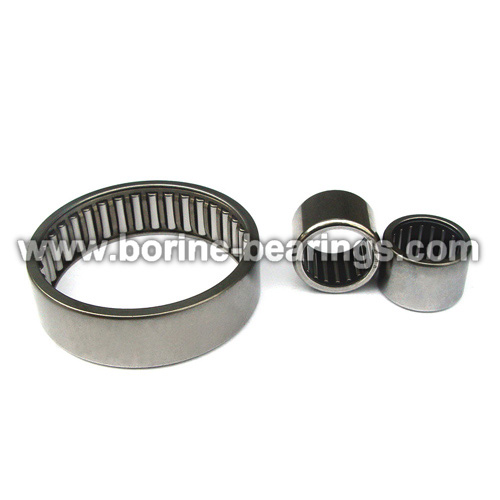

Product Images: Drawn Cup Needle roller Bearing
