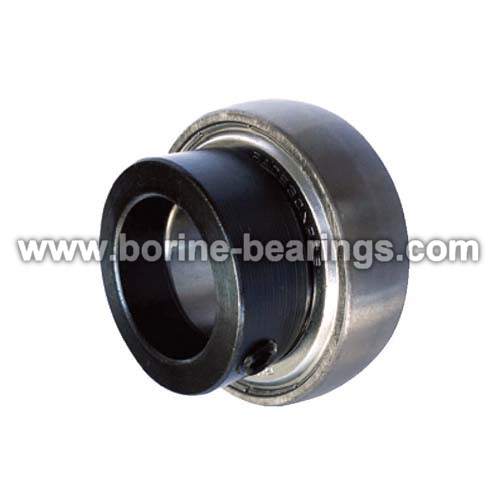

China SA200 series Radial Insert Bearing,SA200 series Radial Insert Bearing Manufacturer
Insert Bearing is general designed with prelubricated. Adopted Double-Ply or Tri-Ply seal.Suitable for environment where severe contamination such as agricultural tillage equipment. This series of bearing is easy to be assembled and disassembled. It can rugulates the shaft angular deviation from two ends supporting and shaft distortion automatically
Insert Bearings
SA200, CSA200 series
| Bearing No. |
Shaft Dia d in. mm |
Dimensions(mm) |
Mass (kg) |
|||||||
| D | C | h | S | B1 | B | B3 | d1 | |||
| SA201 | 12 | 40 | 12 | 3.6 | 6.5 | 28.6 | 19.1 | 13.5 | 28.6 | 0.14 |
| 201-8 | 1/2 | 0.14 | ||||||||
| 202 | 15 | 0.13 | ||||||||
| 202-10 | 5/8 | 0.13 | ||||||||
| 203 | 17 | 0.13 | ||||||||
| 203-11 | 11/16 | 0.13 | ||||||||
| SA204-12 | 3/4 | 47 | 14 | 4 | 7 | 29.5 | 20 | 13.5 | 33.3 | 0.15 |
| 204 | 20 | 0.18 | ||||||||
| SA205-14 | 7/8 | 52 | 15 | 4.3 | 7.5 | 30.5 | 21 | 13.5 | 38.1 | 0.22 |
| 205-15 | 15/16 | 0.21 | ||||||||
| 205 | 25 | 0.19 | ||||||||
| 205-16 | 1 | 0.18 | ||||||||
| SA206-18 | 1-1/8 | 62 | 16 | 5 | 8 | 33.9 | 22 | 15.9 | 44.5 | 0.35 |
| 206 | 30 | 0.33 | ||||||||
| 206-19 | 1-3/16 | 0.31 | ||||||||
| 206-20 | 1-1/4 | 0.28 | ||||||||
| SA207-20 | 1-1/4 | 72 | 18 | 5.7 | 9 | 37.5 | 24 | 17.5 | 55.6 | 0.56 |
| 207-21 | 1-5/16 | 0.53 | ||||||||
| 207-22 | 1-3/8 | 0.51 | ||||||||
| 207 | 35 | 0.5 | ||||||||
| 207-23 | 1-7/16 | 0.48 | ||||||||
| SA208-24 | 1-1/2 | 80 | 19 | 6.2 | 9.5 | 40.5 | 27 | 18.3 | 60.3 | 0.68 |
| 208-25 | 1-9/16 | 0.67 | ||||||||
| 208 | 40 | 0.65 | ||||||||
| SA209-26 | 1-5/8 | 85 | 20 | 6.8 | 10 | 42.2 | 28.7 | 18.3 | 63.5 | 0.82 |
| 209-27 | 1-11/16 | 0.76 | ||||||||
| 209-28 | 1-3/4 | 0.73 | ||||||||
| 209 | 45 | 0.69 | ||||||||
| SA210-30 | 1-7/8 | 90 | 21 | 6.5 | 10.5 | 43.7 | 30.2 | 18.3 | 69.9 | 0.85 |
| 210-31 | 1-15/16 | 0.83 | ||||||||
| 210 | 50 | 0.8 | ||||||||
| SA211-32 | 2 | 100 | 23 | 7.2 | 11.5 | 48.4 | 32.5 | 20.7 | 76.2 | 1.18 |
| 211-34 | 2-1/8 | 0.96 | ||||||||
| 211 | 55 | 0.87 | ||||||||
| 211-35 | 2-3/16 | 0.81 | ||||||||
