Self-Aligning Roller Bearing

Product Name: Self-Aligning Roller Bearing

Product Details: Self-Aligning Roller Bearing

Self-Aligning Roller Bearing can bear bigger loading than Self-Aligning Ball Bearing.It is suitable for the situation of heavy duty or vibrational loading such as Mining Machinery,Metallurgical Machinery etc. Have 22200, 223000, 22200K, 22300K, 22200 W33, 22300 W33 etc series.
The material of Cage have Brass and steel.

Self-Aligning Roller Bearings
Spherical Roller Bearings

22200, 22200K, 22200 W33 series
22300, 22300K, 22300 W33 series

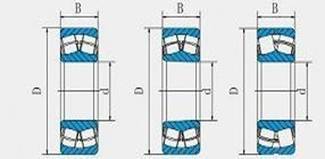

Bearing No.		Boundary Dimensions (mm)			Load Rating (kN)		Wt.
Bearing No.		d	D	B	Cr	Cor	(kg)
22206	22206K	30	62	20	30.5	38.2	0.30
22207	22207K	35	72	23	45.2	59.5	0.43
22208	22208K	40	80	23	49.8	68.5	0.55
22209	22209K	45	85	23	52.2	73.2	0.59
22210	22210K	50	90	23	52.2	73.2	0.87
22211	22211K	55	100	25	60	87.2	0.86
22212	22212K	60	110	28	81.8	112	1.22
22213	22213K	65	120	31	88.5	128	1.63
22214	22214K	70	125	31	95	142	1.66
22215	22215K	75	130	31	95	142	1.75
22216	22216K	80	140	33	115	180	2.20
22217	22217K	85	150	36	145	228	2.80
22218	22218K	90	160	40	168	272	4.00
22219	22219K	95	170	43	212	322	4.20
22220	22220K	100	180	46	222	358	5.00
22222	22222K	110	200	53	288	465	7.40
22224	22224K	120	215	58	342	565	9.20
22226	22226K	130	230	64	408	708	11.20
22228	22228K	140	250	68	478	805	14.50
22230	22230K	150	270	73	750	1131	18.50
22308	22308K	40	90	33	73.5	90.5	1.03
22309	22309K	45	100	36	108	140	1.40
22310	22310K	50	110	40	128	170	1.90
22311	22311K	55	120	43	155	198	2.40
22312	22312K	60	130	46	168	225	3.00
22313	22313K	65	140	48	188	252	3.60
22314	22314K	70	150	51	230	315	4.40
22315	22315K	75	160	55	262	388	5.40
22316	22316K	80	170	58	288	405	6.40
22317	22317K	85	180	60	308	440	7.40
22318	22318K	90	190	64	365	542	8.80
22319	22319K	95	200	67	385	570	10.30
22320	22320K	100	215	73	450	668	13.00
22322	22322K	110	240	80	545	832	18.10
22324	22324K	120	260	86	645	992	22.00
22326	22326K	130	280	93	722	1140	29.00
22328	22328K	140	300	102	825	1340	36.00
22330	22330K	150	320	108	1271	1848	43.00

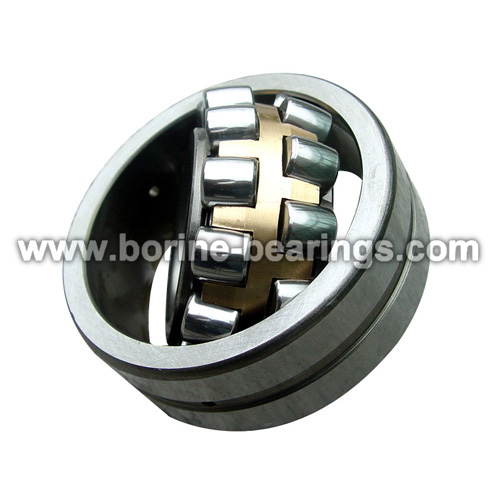

Product Images: Self-Aligning Roller Bearing
