3-Bolt Hole Round Self-Aligning Mounting Flanges

Product Name: 3-Bolt Hole Round Self-Aligning Mounting Flanges

Product Details: 3-Bolt Hole Round Self-Aligning Mounting Flanges

All Stamped Steel Mounting Flanges are for curved outer race bearings. May be mounted at any angle to provide a sturdy, compact housing for the bearing. Initial self-alignment is provided by the curved outer surface of the bearing which matches the curved inside surface of the flange mount. Flanges available in Round, Triangular, 2-Hole, Pillow Block.

Stamped Steel Mounting Flanges
3-Bolt Hole Round Self-Aligning Mounting Flanges

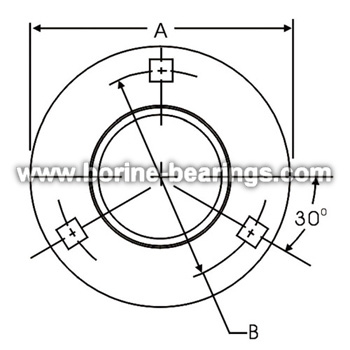

Part Number		To Fit Shaft Size	A.	B.
PF203	40MS	1/2", 9/16", 5/8"	3 3/16"	2 1/2"
PF204	47MS	3/4"	3 9/16"	2 13/16"
PF205	52MS	13/16", 7/8", 15/16", 1"	3 3/4"	3"
PF206	62MS	1 1/16", 1 1/8", 1 3/16", 1 1/4"	4 7/16"	3 9/16"
PF207	72MS	1 1/4", 1 5/16", 1 3/8", 1 7/16"	4 13/16"	3 15/16"
