4-Bolt Hole Round Self-Aligning Mounting Flanges

Product Name: 4-Bolt Hole Round Self-Aligning Mounting Flanges

Product Details: 4-Bolt Hole Round Self-Aligning Mounting Flanges

All Stamped Steel Mounting Flanges are for curved outer race bearings. May be mounted at any angle to provide a sturdy, compact housing for the bearing. Initial self-alignment is provided by the curved outer surface of the bearing which matches the curved inside surface of the flange mount. Flanges available in Round, Square, Triangular, 2-Hole, Pillow Block.

Stamped Steel Mounting Flanges
4-Bolt Hole Round Self-Aligning Mounting Flangettes

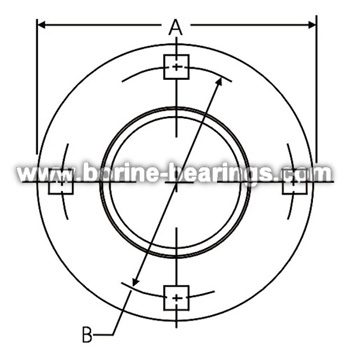

Part Number		To Fit Shaft Size	A.	B.
PF208	80MS	1 1/2", 1 9/16", 1 5/8"	3 3/16"	2 1/2"
PF209	85MS	1 5/8", 1 11/16", 1 3/4"	3 9/16"	2 13/16"
	87MS	Square Bore 7/8", 1", 1 1/8",	3 3/4"	3"
PF210	90MS	1 13/16", 1 7/8", 1 15/16", 2"	4 7/16"	3 9/16"
PF211	100MS	2", 2 1/16", 2 1/8", 2 3/16"	6 9/16"	5 7/16"
