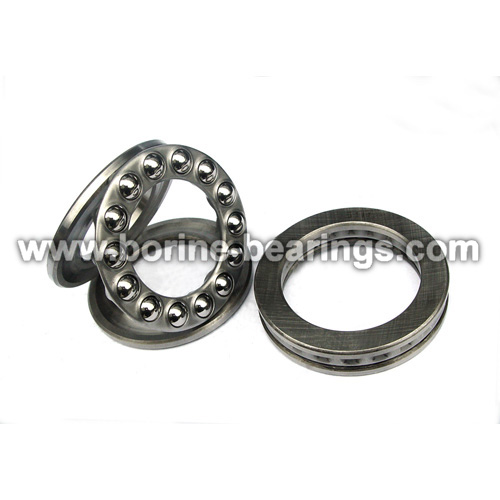

China Thrust Ball Bearings 51300 series,Thrust Ball Bearings 51300 series Manufacturer
Thrust Ball Bearing is designed only can bear axial loading,can transfer a large loading.It is mainly applied for the Automobile Steering Systems or Machine Tool Spindles. 51300, 51400 series.
Thrust Ball Bearings
51300, 51400 Series
| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating | Wt. | |||
| d | D | T | Ca (KN) | Coa (KN) | (kg) | |
| 51305 | 25 | 52 | 18 | 35.70 | 61.40 | 0.176 |
| 51306 | 30 | 60 | 21 | 42.80 | 78.70 | 0.269 |
| 51307 | 35 | 68 | 24 | 55.50 | 105.00 | 0.383 |
| 51308 | 40 | 78 | 26 | 69.30 | 135.00 | 0.548 |
| 51309 | 45 | 85 | 28 | 80.00 | 163.00 | 0.684 |
| 51310 | 50 | 95 | 31 | 91.60 | 186.00 | 0.951 |
| 51311 | 55 | 105 | 35 | 119.00 | 246.00 | 1.290 |
| 51312 | 60 | 110 | 35 | 124.00 | 267.00 | 1.370 |
| 51313 | 65 | 115 | 36 | 128.00 | 287.00 | 1.510 |
| 51314 | 70 | 125 | 40 | 148.00 | 340.00 | 2.010 |
| 51315 | 75 | 135 | 44 | 171.00 | 396.00 | 2.610 |
| 51316 | 80 | 140 | 44 | 176.00 | 242.00 | 2.720 |
| 51317 | 85 | 150 | 49 | 206.00 | 498.00 | 3.520 |
| 51318 | 90 | 155 | 50 | 213.00 | 524.00 | 3.740 |
| 51320 | 100 | 170 | 55 | 236.00 | 596.00 | 4.880 |
| 51322 | 110 | 190 | 63 | 280.00 | 754.00 | 7.670 |
| 51324 | 120 | 210 | 70 | 296.00 | 805.00 | 10.800 |
| 51326 | 130 | 225 | 75 | 330.00 | 960.00 | 12.700 |
| 51405 | 25 | 60 | 24 | 55.50 | 89.50 | 0.330 |
| 51406 | 30 | 70 | 28 | 72.50 | 126.00 | 0.516 |
| 51407 | 35 | 80 | 32 | 87.00 | 155.00 | 0.750 |
| 51408 | 40 | 90 | 36 | 112.00 | 205.00 | 1.080 |
| 51409 | 45 | 100 | 39 | 130.00 | 242.00 | 1.430 |
| 51410 | 50 | 110 | 43 | 158.00 | 310.00 | 1.900 |
| 51411 | 55 | 120 | 48 | 178.00 | 360.00 | 2.520 |
| 51412 | 60 | 130 | 51 | 214.00 | 435.00 | 3.120 |
| 51413 | 65 | 140 | 56 | 323.00 | 495.00 | 3.960 |
| 51414 | 70 | 150 | 60 | 250.00 | 555.00 | 4.860 |
| 51415 | 75 | 160 | 65 | 269.00 | 615.00 | 5.970 |
